Thermal facade systems

Termovol

Security and thermal protection in one



Termovol

The thermal facade system

Natural materials, as well as non combustibility of the thermal system, are the ideal solution for the highest standard of thermal protection of buildings with fire safety requirements (residential building height above 22 m, kindergartens, schools, public institutions, etc.).
It is characterized by high water vapor permeability, as an added benefit in thermal renovation of old buildings.
Certified (HRN EN 13500: 2004) thermal system TERMOVOL with panels of mineral wool is the first choice for the most demanding customers and investors.

Protected and safe in the shelter of your home.

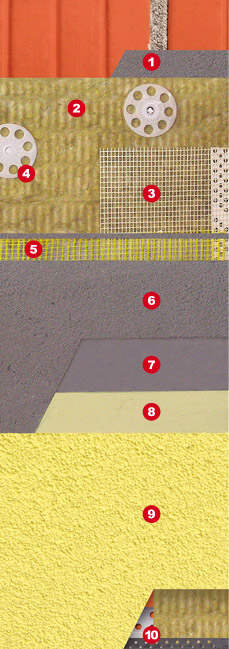

» Binding


1Samoterm®

The polymer-cement mortar for bonding and for the first application of base coat.
» Thermal insulation panel


2 The panel of mineral wool

The panel of mineral wool (certified for installation in ETICS in Croatia)
» Angle profile with mesh


3PVC with fiberglass mesh

10x15 cm for mechanical protection of corners
» Anchors (tiples)


4Anchor  MIK

Polyamide anchor for additional mechanical fixing of thermal insulation panels, length 75-175 mm
» Certified reinforcing mesh


5Samoborka PRIMAFAS 160

Alkali resistant fiberglass mesh type Samoborka PRIMAFAS 160, yellow coloured (certified for installation in ETICS in Croatia)
» Reinforcement


6Samoterm®

The polymer-cement mortar for the second application of base coat


7Samoterm® Glet

The polymer-cement mortar for the second application of base coat
»Impregnation


8Mineralkvarc Grund coloured

Basic topcoat for the impregnation of the substrate before applying the finishing coloured mineral, silicone and acrylic plaster


8Silikatgrund coloured

Primer for the impregnation of mineral substrates before application of SILICATE PLASTER
» Finishing facade plasters


9Acrylic plaster

Finishing decorative plaster

TERAKRIL Z - Polymer and waterproof ­finishing decorative plaster of dash fi­nish ("grainy") texture / grain size of 1.5 mm, 2 mm, 3 mm
TERAKRIL R - Finishing decorative plaster grated texture / grain size of 2 mm, 3 mm
TERAKRIL VA - Finishing decorative plaster rolled texture / grain size 1 mm
TERAKRIL Š - Finishing decorative plaster sprayed texture, grain size 1,5 mm


9Silicate plasters

Finishing decorative plaster

SILICATE PLASTER Z - Polymer and waterproof ­finishing decorative plaster of dash fi­nish ("grainy") texture / grain size of 1.5 mm, 2 mm, 3 mm
SILICATE PLASTER R - Finishing decorative plaster grated texture / grain size of 2 mm, 3 mm
SILICATE PLASTER VA - Finishing decorative plaster rolled texture / grain size 1 mm
SILICATE PLASTER Š - Finishing decorative plaster sprayed texture, grain size 1,5 mm


9Silicone plasters

Finishing decorative plaster

SILICONE PLASTER Z - Polymer and waterproof ­finishing decorative plaster of dash fi­nish ("grainy") texture / grain size of 1.5 mm, 2 mm, 3 mm
SILICONE PLASTER R - Finishing decorative plaster grated texture / grain size of 2 mm, 3 mm
SILICONE PLASTER VA - Finishing decorative plaster rolled texture / grain size 1 mm
SILICONE PLASTER Š - Finishing decorative plaster sprayed texture, grain size 1,5 mm


9SEP Z 200, SEP Z 300, SEP 03

Mineral finishing decorative plaster of dash finish ("grainy") or grated texture , grain size2 mm, 3 mm
» Socle profile


10Aluminium trough

For socle processing, profile width depends on the thickness of plate, length 2,5 m/piece
